Power Distribution Blocks



  Model Number Short Description Sale Price QTY Stock Status Lead Time Specs
Power Distribution Block

38019

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 310A, 600V, IEC 400A, 690V IEC. 1 input: 3/0AWG to 350kcmil; 11 outputs:...

$43.95

In StockAvailable NowSpecs
Power Distribution Block

38020

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 230A, 600V, IEC 250A, 690V IEC. 1 input: 2AWG to 4/0AWG.11 outputs: 2 ...

$43.95

In StockAvailable NowSpecs
Power Distribution Block

38032

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 160A, 600V, IEC 160A, 690V IEC. 1 input: 8AWG to 2/0AWG. 6 outputs: 14...

$28.95

In StockAvailable NowSpecs
Power Distribution Block

38041

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 115A, 600V, IEC 125A, 690V IEC. 1 input: 8AWG to 2AWG. 6 outputs: 14 X ...

$20.25

In StockAvailable NowSpecs
Power Distribution Block

38049

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 80A, 600V, IEC 80A, 690V. 1 input: 8AWG to 4AWG. 6 outputs: 2 X 8-4AWG and 4...

$10.95

In StockAvailable NowSpecs
Power Distribution Block

38057

Power Distribution Block
Auxel Splicer Terminal  Block, DIN rail or panel mountable, UL 400A, 600V, IEC 400A, 690V IEC; 1 input: 6AWG to 400MCM; 1 output 6AWG to 400MCM

$43.95

Contact UsContact UsSpecs
Power Distribution Block

38059

Power Distribution Block
Auxel Splicer Terminal  Block, DIN rail or panel mountable, UL 800A, 600V, IEC 800A, 690V IEC; 2 input: 3AWG to 600MCM; 2 output 3AWG to 600MCM

$80.95

Contact UsContact UsSpecs
Power Distribution Block

38064

Power Distribution Block
Auxel Splicer Terminal  Block, DIN rail or panel mountable, UL 175A, 600V, IEC 175A, 690V IEC; 1 input: 14 to 1AWG; 1 output 14 to1AWG.

$33.95

In StockAvailable NowSpecs
Power Distribution Block

38073

Power Distribution Block
Auxel 3 Phase Power Distribution Block, DIN rail or panel mountable, UL 175A, 600V, IEC 175A, 690V IEC; 3 X 1 input: 8AWG to 2/0AWG;  3 X 6...

$55.60

Contact UsContact UsSpecs
Power Distribution Block

38074

Power Distribution Block
Auxel 1 Phase Power Distribution Block, DIN rail or panel mountable, UL 175A, 600V, IEC 175A, 690V IEC. 1 input: 6AWG to 2/0AWG. 10 outputs: 14...

$32.95

In StockAvailable NowSpecs



Displaying 1 to 10 (of 17 products)
 1  2  [Next >>]

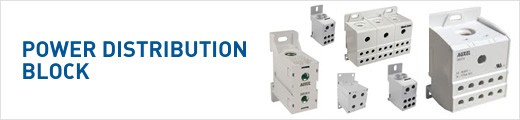

Want the Easiest to Install Power Distribution Blocks Available?

Industrial Control Direct’s line of Power Distribution Blocks are yet another example of top quality products coming from one of the best producers of industrial controls in the world. Thanks to the wide selection offered, you can rest assured that we have the distribution blocks you need for your electrical needs.

The Power Distribution Blocks we offer are made from brass with polyamide housing and can sustain high short circuit Icc currents. This sets them apart from conventional busbar distribution blocks. Some other reasons to choose these distribution blocks are how simple it is to wire them, their quick mounting, and their capacity.

What Sets These Distribution Blocks apart?

The conventional busbar distribution blocks are less expensive at first glance, but when you factor in the time it takes to mount and to wire them, they become more expensive in the long run. Our Power Distribution Blocks are much more professional and cleaner. Installation is a breeze. In addition, stacked, conventional busbars often require lugs, supports, casings, and bars. Our distribution blocks allow for extremely simple busbar configurations.

In addition, the Power Distribution Blocks we offer are compact. You can save up to 80 percent of the space used on a DIN rail or panel. Plus, with a depth of 44.5 millimeters and height of 95 millimeters max, these blocks can fit with other DIN rail mountable modular devices. By using several blocks, you can build one to four pole systems with the modular construction. For added security and safety, these devices are IP20 finger safe. Also, there are no caps on these units that you have to remove or open.

What Features Are There?

For distribution block 38032 and 38041, you can use accessories to bump up the number of outputs with only one input. Check out the product description to find out how many inputs and outputs are allowed for each unit. Due to the shallow design of our Power Distribution Blocks, you will not have to worry about them preventing the closing for your panel front cover.

The markings on the Power Distribution Blocks are clear. By applying the supplied labels, you can clearly mark each of the poles on the housing. Also, on each output pole, there are clearly marked individual connections. You can use a standard screwdriver to make the output connections. While an Allen key can be used for the input connections. Each of the distribution blocks is rated for a voltage of 600 AC and 115 amps.

Industrial Control Direct stands by our Power Distribution Blocks. Our experts test out products throughout the world to find the best ones for us to offer on our website. If an item is not up to our standards, you will not find it on our website.

Power Distribution Blocks Pros:

  • Fit with other DIN rail mountable modular devices
  • Quickly mounted and wired
  • Finger contact protection IP 20
  • Due to shallow design, does not prevent closing of panel front cover
  • Available in one to four pole versions
