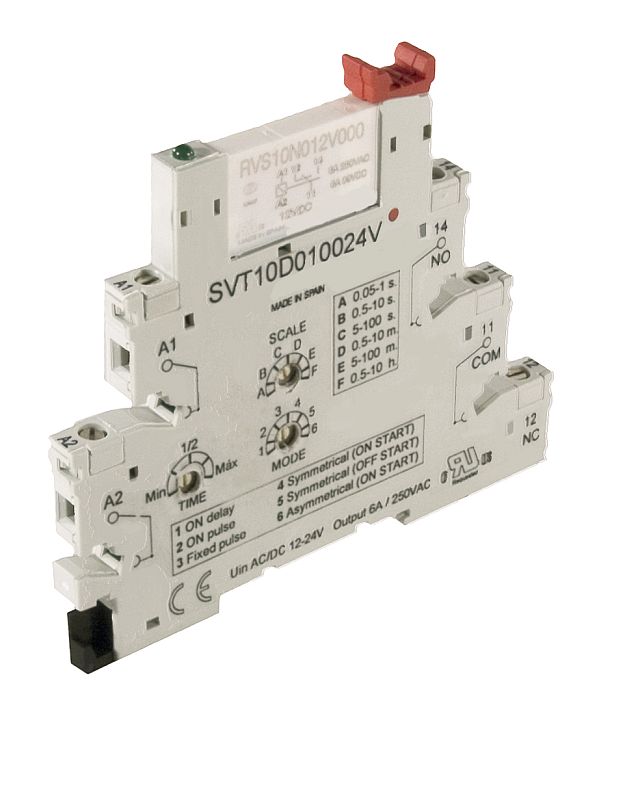

SlimLine Timer

Slimline 6.2mm programmable timing module, 12-24VDC, 0.05second to 10 hours, LED indicator

Type: SimLine Timer
Voltage: 12-24VDC
Size: 6.2mm
Amps: 6A

Cramped For Space?

Are you in a situation where you need to use a timer but have very limited space?

Try our new 6.2mm 6 functions timer.

 Up to 6 functions can be configured with 3 trimmers and using 6 different time scales

• Compact design (6.22 mm wide casing).
• Easy DIN rail mounting and wiring.

• SPDT 1-relay output with a switching capacity of 6 A (AC1 / 250 V, DC1 / 30 V).

• Timing range: 0.05 seconds to 10 hours.

• LED indication of relay excitation.

• One model covers the whole tension range 12 - 24 VAC/DC.

Functions includes:

Function 1 On delay (switch-on delay)
Function 2 On pulse (switch-off delay)
Function 3 Fixed pulse
Function 4 Symmetrical cycle (starts activated)
Function 5 Symmetrical cycle (starts disconnected)
Function 6 Asymmetrical cycle (starts disconnected)
