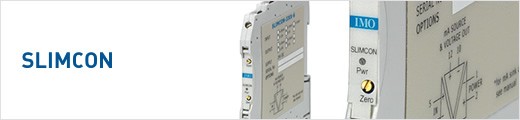

SLIMCON-6
ISOLATING SIGNAL CONVERTER

• Wide Range of Inputs Available
• Full 3 Port Isolation Zero and Span Pots for Output

• Fast Time Response

• High Accuracy, Low cost

• Only 7.2mm Wide


Description
The SLIMCON family of isolating Signal Converters can accept a range of inputs including 420mA and voltage signals. The unit produces a high level DC output of either voltage or current.

Full 3 port isolation is standard on the product range. The SLIMCON can be factory configured to accept a current or voltage input and provides a current or voltage output.

The Input and Output of the unit can also be reconfigured using the built-in switches together with the zero and span adjustment potentiometers.

The unit is powered from 24Vdc nominal.

Inputs

SLIMCON for DC Current & Voltage 0-20mA, 4-20mA, 0-10mA Into 5 ohm /11ohm 0-10V, 1-5V, 2-10V into 1M ohm

Outputs DC Current and Voltage Current source or sink 0-20ma, 4-20mA  into 500 ohm 0-10V, 0-5V into a minimum 100K ohm
