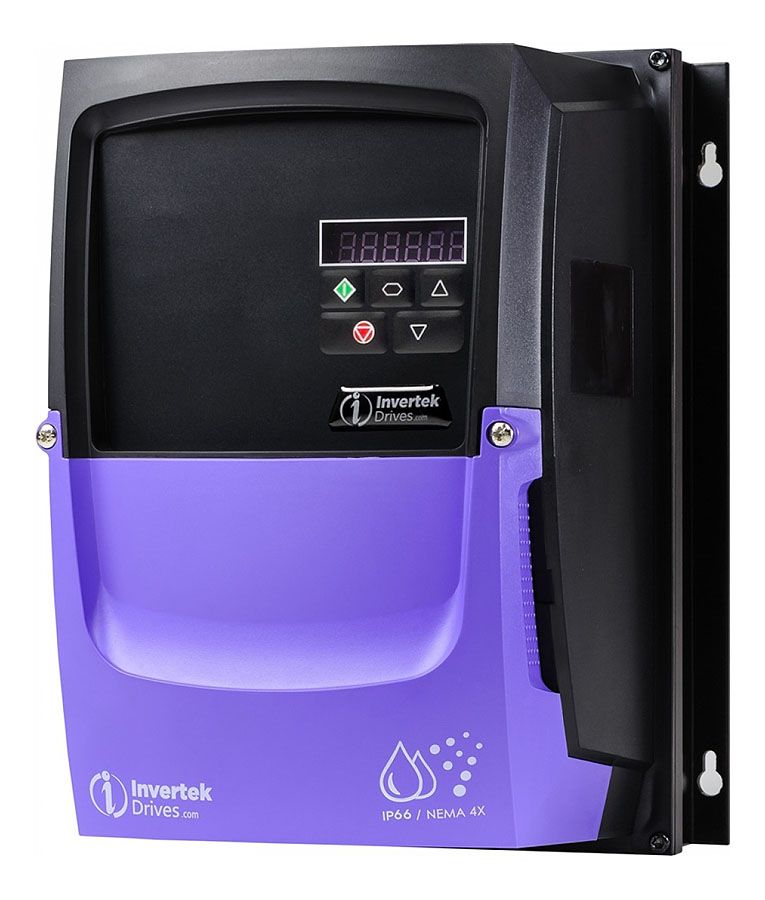

ODE-3-120023-1F1A

Model Number: ODE-3-120023-1F1A
Stock status: Contact Us
Lead Time: Contact Us

Our Price: $333.60

Product Description

Input Ratings Supply Voltage 200-240 V Input Phases 1 Supply Current Continuous 3.7 A Supply Fuse or MCB (Type B) 10 A Output Ratings Motor Output Rating 0.37 kW (0.5 HP) Output Voltage 0 – Supply Voltage Output Current 2.3 A Cable Information Max Supply Cable Size 8 mm² (0.01 sq in) Max Motor Cable Size 8 mm² (0.01 sq in) Max Motor Cable Length 100 m (328 ft) Factory Build Options EMC Filter Internal EMC Filter Brake Transistor No Internal Brake Transistor Enclosure IP66 Outdoor Non-switched Dimensions Size 1 Height 232 mm (9.13 in) Width 161 mm (6.34 in) Depth 162 mm (6.38 in) Weight 2.3 kg (5.07 lbs) Fixings 4 x M4 Packaged Dimensions Height 205 mm (8.07 in) Width 210 mm (8.27 in) Depth 345 mm (13.58 in) Weight 2.9 kg (6.39 lbs)
No technical information is available for this product. If you have any questions on this product, please contact us for expert assistance.
