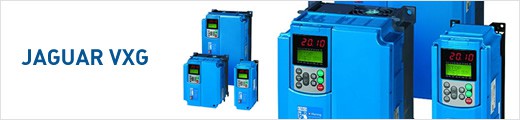

IMO Jaguar VXG high performance drives
3 Phase: 0.37-710kW (0.5-950HP)

Key Features

• User configurable ‘quick-start’ menu
• IP20 side-by-side mounting (IP40 option kit)

• Integrated EMC filter (EN61800-3 2004 cat C3)

• PLC logic type function

• V/F, Torque Vector and closed loop control

• Loss-of-command signal detection

• 200% starting torque between 0.3-5Hz.

• Improved open-loop low-speed stability

• Safety input: digital input to enable disable the IGBT devices of the inverter output stage

• Mechanical brake control output torque generated

• PID thermistor input

• Input and Output phase-loss protection

• Life time / service due alarm output

• Thermostatically operated long-life cooling fans (designed to operate for 10 years at 40C)

• Optional Keypad with mini USB port.

• Standard multi-function back-lit keypad with parameter copy mode

• Encoder feedback (closed-loop) and shaftsynchronizing options

• Synchronous (Permanent Magnet) motor options

• Internal brake chopper up to 22kW (30-110kW upon request)
