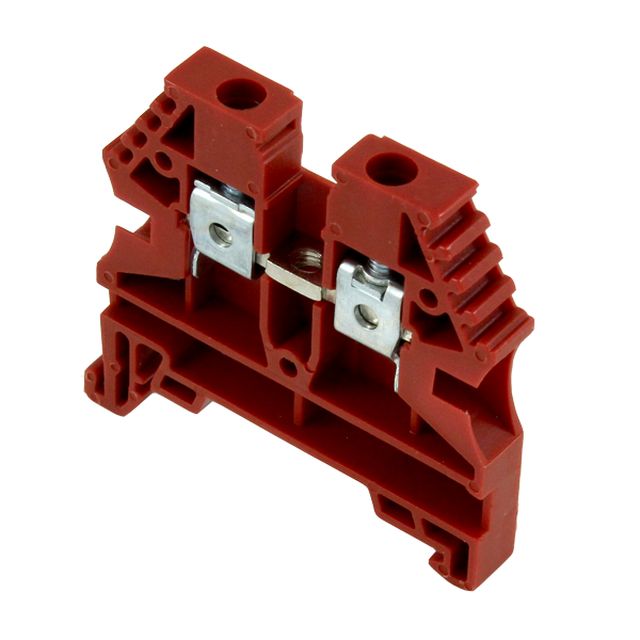

Feed Through Terminal Block

Model Number: ER4/20Red
Stock status: Contact Us
Lead Time: Contact Us

Our Price: $10.00

Product Description

IMO Din Terminal Block, Feed-Through, 30 A, 600 V, 26-10 AWG, red, 6 mm, 20 pieces.

*Manufacture pack size change* Type: Feed Through
Voltage: 600 AC
Size: 26-10 AWG
Amps: 30 A
Color: Red
Competitive Part Numbers:
Automation Direct Part: DN-T10RED-A
Allen Bradley Part: 1492-J4-RE

Modular Terminal Blocks: Modular terminal blocks are used worldwide. Whether they be in distribution boards, control centers or machine control systems, in ships, power stations or railway rolling stock, Industrial Control Direct terminals guarantee safe connections in all low voltage installations. In view of this versatile and worldwide application, the materials use and the technical data achieved meet the highest quality standard. Approvals have been obtained from all major industrial countries

Engineering Thermoplastic Polyamide 6.6 has excellent electrical, mechanical and chemical characteristics even at temperatures as high as 100?C and contain no cadmium based colour pigments. Polyamide 6.6 moulded housing absorbs humidity from its surroundings. This makes the plastic material elastic and fracture proof even at temperatures as low as -40?C. Being a self extinguishing material it is difficult to ignite and burns only as long as there is a supporting flame. It is rated V2 according to UL94. Good aging resistance and insensitivity to ultraviolet light makes it suitable for tropical and open air applications.



  Model Number Short Description Sale Price QTY Stock Status Lead Time Specs
(image for) End Stop Terminal Block


End Stop Terminal Block

IMO Din Terminal Block, End Stop, for all terminals, beige, 100 pieces.


Available Now
(image for) End Plate Terminal Block


End Plate Terminal Block

IMO Din Terminal Block, End Plate for terminal ER 2.5, ER 4, red, 1.5 mm, 10 pieces


Contact UsContact Us
(image for) Cross Connector Terminal Block


Cross Connector Terminal Block

IMO Din Terminal Block, Isolated Jumper bar 2 points, fit terminal ER 4, ER 4C, ERD series, 25 pieces


Available Now
(image for) Cross Connector terminal Block


Cross Connector terminal Block

IMO Din Terminal Block, Isolated Jumper bar 10 points, fit terminal ER 4, ER 4C, ERD series, 5 pieces


Available Now
(image for) DIN Rail


DIN Rail

Din Rail, W: 35 mm X H: 7.5 mm X L: 1 meter, slotted, 20 pieces


Available Now
